Precision and Efficiency in Titanium Alloy Cutting Using Laser Technology

Introduction

Titanium alloy, recognized for its exceptional properties such as high strength-to-weight ratio, excellent corrosion resistance, low density, and high fatigue strength, is a sought-after material in aerospace, shipbuilding, automotive, energy.medical, and consumer applications. Known as the "metal of the deep sea," "metal of space," and "biomaterial" titaniumalloy has become a cornerstone of modern engineering. Advanced laser cutting technology has unlocked new possibilitiesfor the cost-effective and precise processing of this challenging material, paving the way for broader applications.

Laser Cutting Technology: A High-Energy, High-Precision Solution

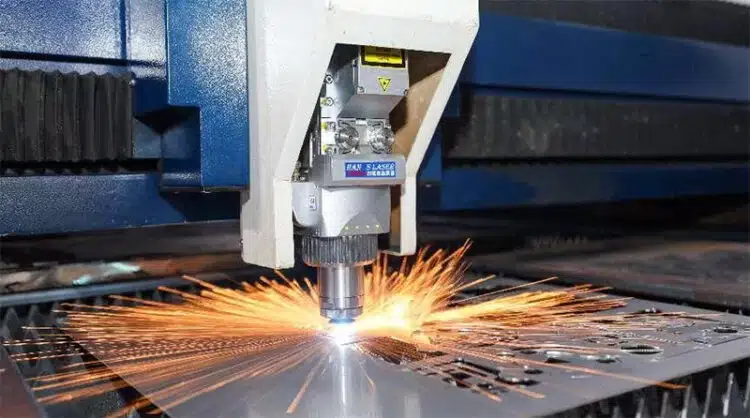

Laser cutting uses a high-energy beam to process materials with exceptional precision. By focusing the laser beam onto the material surface,it rapidly heats, melts, vaporizes, or burns the material, enabling accurate and efficient cutting. This technology offers significant advantages, particularly in processing titanium alloys.

1. Key Advantages of Laser Cutting for Titanium Alloys

High Precision: Enables intricate and precise cutting, ideal for complex shapes and high-tolerance requirements.
High Efficiency: Non-contact processing ensures faster cutting speeds compared to traditional methods, boosting productivity
Flexibility: Laser paths are software-controlled, allowing easy adiustments for cutting diverse geometries, from flat sheetsto 3D components.
Minimal Heat-Affected Zone: Reduces material deformation and residual stress, ensuring high-quality cuts.
Versatility: Adapts to varying thicknesses and grades of titanium alloys with minimal setup changes.

2. Factors influencing Cutting Quality

Several factors impact the quality of laser cutting for titanium alloys:
• Laser Power: While higher power increases cutting speed, excessive power can lead to overheating or uneven meltingOptimal power selection is crucial based on material thickness and composition.
• Cutting Speed: Speed must be balanced to ensure complete cuts without excessive material melting or thermal distortion.
• Focus Position: Proper alignment ensures energy is concentrated on the cutting area for precise and clean cuts.
• Assist Gas: Gases like oxygen, nitrogen, or argon remove molten material during cutting, and their type, pressure, andflow rate significantly influence cut quality.
• Material Thickness: Cutting parameters must be tailored to accommodate different thicknesses, with thicker materialsrequiring more precise power and speed adjustments.

Applications of Titanium Alloy Laser Cutting

As the automotive industry shifts toward lightweight design, laser cutting has become essential in processing titaniumalloy components, particularly for electric vehicles. By enabling precise cutting of body parts, laser technology helpsreduce overall vehicle weight, improve stability, and enhance production efficiency.

Beyond automotive applications, laser cutting is widely used in:
• Aerospace: Precision cutting of structural components and engine blades
• Medical:Fabrication of surgical instruments and implants.
• High-End Electronics: Processing of intricate parts for advanced devices.
• Chemical Processing: Cutting of corrosion-resistant equipment.

With advancements in laser technology and cost reductions, titanium alloy laser cutting is set to expand into even moreindustries, becoming a key enabler of high-performance manufacturing.

Recommended Equipment

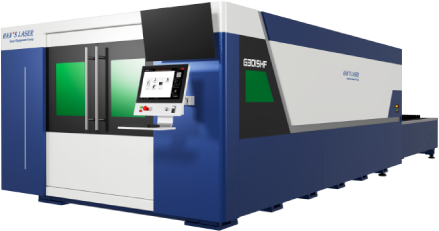

HF Series 3D Five-Axis Fiber Laser Cutting Machine

This advanced machine delivers exceptional cutting performance for complex titanium alloy parts:
1.Lightweight aluminum alloy beam for superior dynamics and precision.
2.Gantry design for high rigidity, speed, and efficiency.
3.Advanced five-axis CNC system for enhanced flexibility and stability.
4.Proprietary optical components developed by Han's Laser for optimal cutting quality.
Fully enclosed desian ensures safe and reliable operation.

The HF series excels in cutting hot-formed components, 3D metal shapes, curved surfaces, and irregular tubes with speed and precision.

Conclusion

Laser cutting technology represents a transformative solution for titanium alloy processing, offering unmatched precisionefficiency, and flexibility. As industries increasingly adopt advanced materials and manufacturing methods, laser cuttingwill play a pivotal role in meeting high-performance standards across sectors.

For more information on how Han's Laser can enhance your titanium alloy processing capabilities, feel free to contact us.
