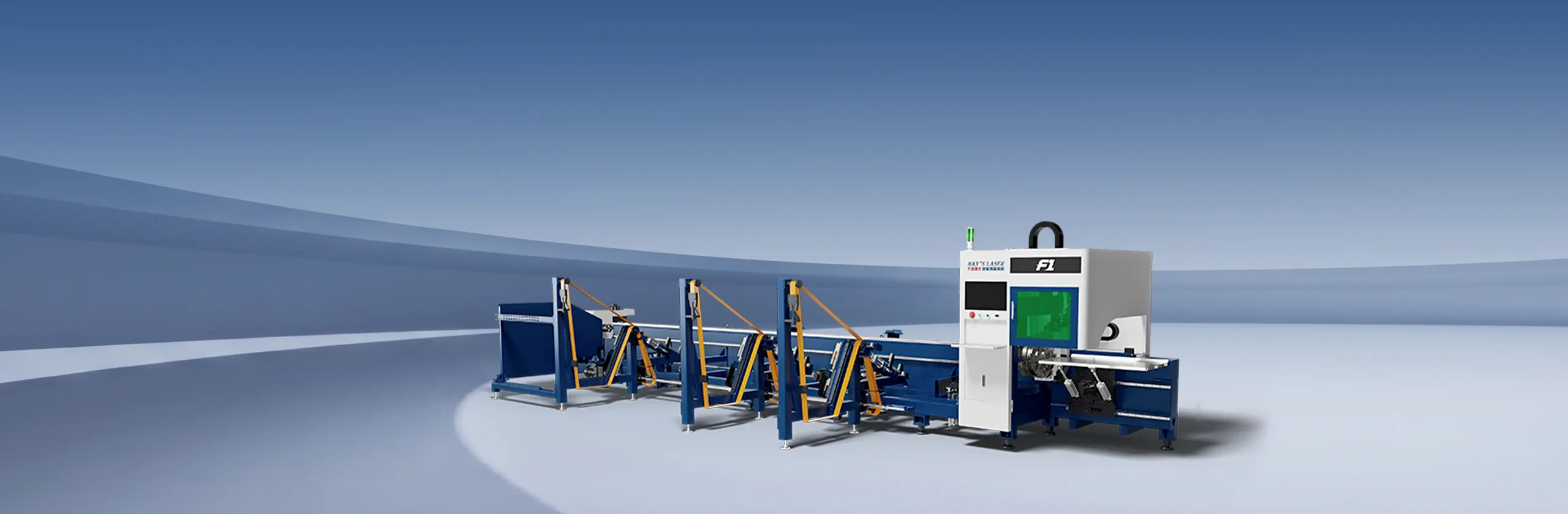

F1 Series
High-Speed Small-Diameter Tube Cutting Chuck Speed 150/min Max. Acceleration 1.5G Max. Traverse Speed 150r/min
F1 Series OptionalTechnical Data Sample
Fill for download or contact us

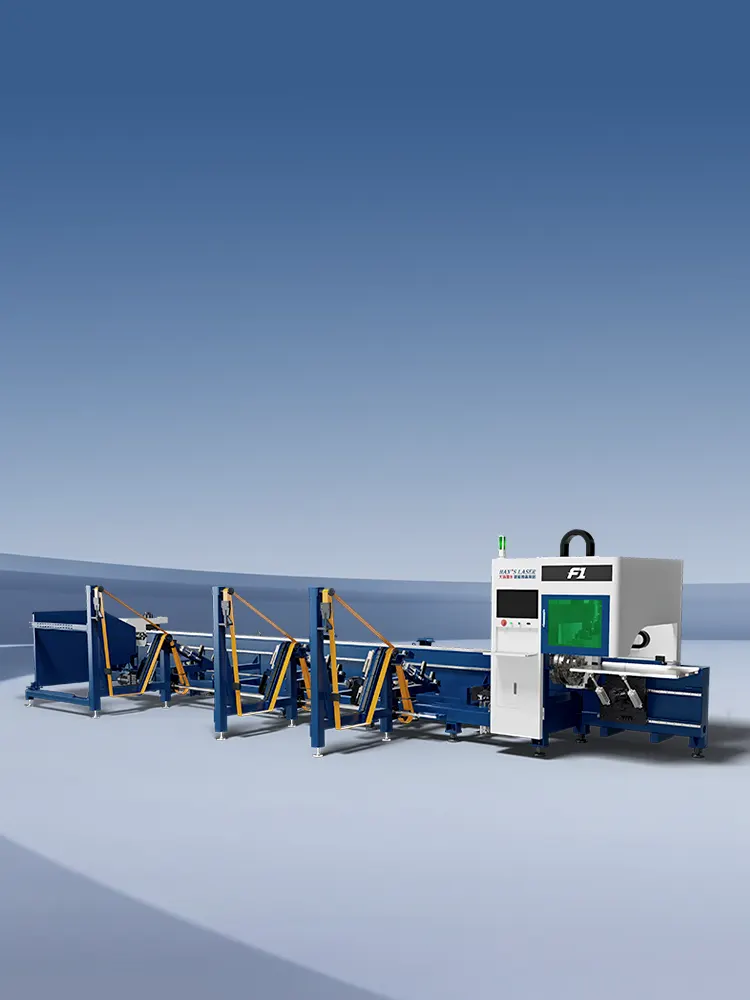

Overview

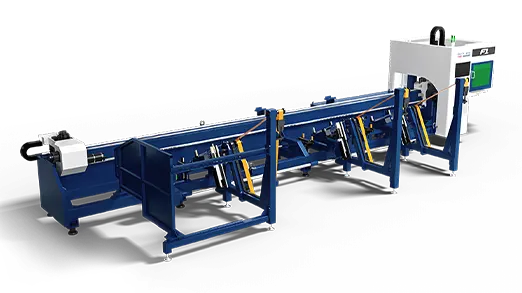

Designed for Small Tube Cutting
Fully compatible with round and square tubes from 10 to 120 mm. Efficiently processes profiles such as angle iron and channel steel. Supports one-key switching between air, oxygen, and nitrogen for optimal cutting gas selection based on material and thickness.

Automatic Loading

Standard Fully Automatic Loading System:

Equipped with full automation, it enables full-process automation for batch production. Material change can be completed in as little as 12 seconds, greatly boosting productivity!

Floating Support

Equipped with Han's patented servo-assisted floating support, motor direct-drive design prevents bending of rectangular and square tubes. It includes a servo-assisted centering device, ensure high-precision machining.

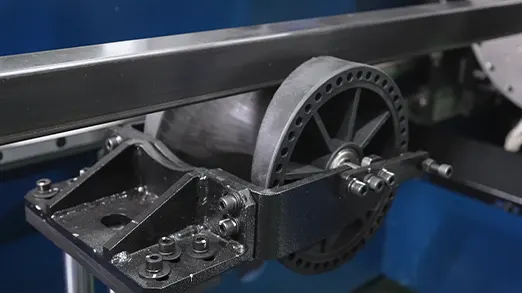

Variable-Diameter Wheel Support

Combines variable-diameter wheels with floating supports to solve complex issues like sagging in various tube sizes and whip prevention.

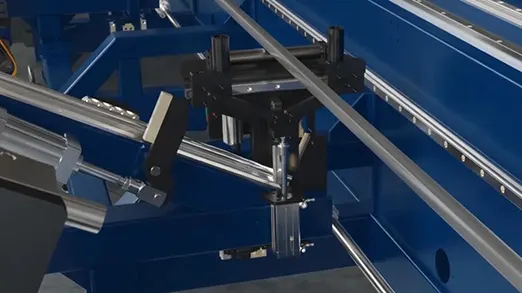

Anti-whipping Support

Anti-Sagging & Misalignment Device: Resolves stability issues during small tube loading and inconsistencies after length measurement.

Short Tail Cutting

Cylinder Overtravel for Short‑Scrap Processing, effectively reducing material waste and production costs. The short‑scrap mode offers multiple options to accommodate diverse scrap‑processing conditions.

40GP Container Shipping

For overseas shipments, the standard configuration fits perfectly into a 40GP container, ensuring simple, efficient and convenient transportation.
Export‑spec models can be optionally equipped with safety features including protective guards, dust extraction systems, safety light curtains, and more.

Optional
Semi-automatice loading
Symmetrical Layout
Seam line recognition
Opposing Plate Clamping Device
Semi-automatice loading
Semi-automatic loading is optional, delivering enhanced loading flexibility.
Symmetrical Layout
It features a modular design for easy installation, convenient hoisting and transport, and rapid commissioning for quick production start‑up. Multiple machines can be arranged in a symmetrical, interconnected layout, allowing one operator to manage several units, saving floor space and labor costs.

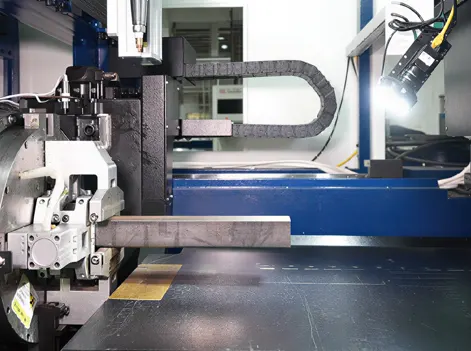

Seam line recognition
It utilizes intelligent vision recognition technology to automatically locate weld seams and plan cutting paths, precisely avoiding welds. This fundamentally prevents tube breakage and deformation caused by cutting through welds, effectively improving yield and overall efficiency.
Opposing Plate Clamping Device
It ensures scratch‑free, residue‑free unloading and boosts material‑change speed.
cutting samples
Technical Data Sample
* For reference only, all data shall be subject to actual technical documents.

F1 Series

Processing Range (Length × Diameter)

Profile Processing Range

Max. Y‑Axis Traverse Speed

Max. B‑Axis Rotation Speed

Max. Acceleration

Loading Length

Unloading Length

Max. Material Weight

Machine Net Weight (approx.)

Machine Dimensions (L × W × H)

6500mm x φ10-120mm 6500mm x □10-120mm

1) National Standard Equal Channel Steel: 5#-8# 2) National Standard Equal Angle Steel: 5#-8#

150m/min

150r/min

1.5G

5000-6500mm

0-1500mm

80 kg (at 6 bar air pressure)

≈4T

Approx. 10.5m x 2.8m x2.5m
