W Series

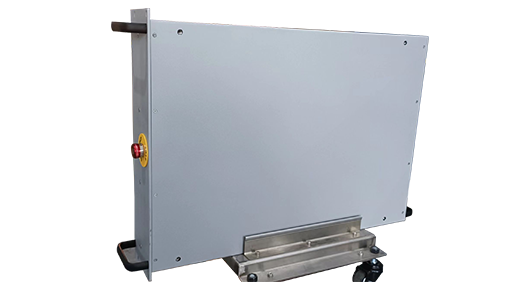

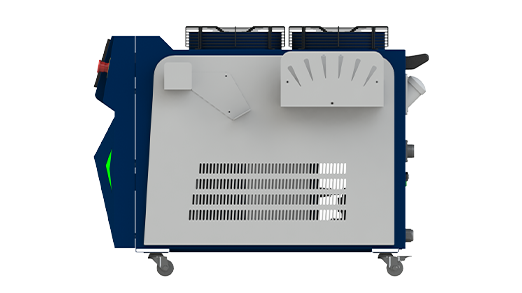

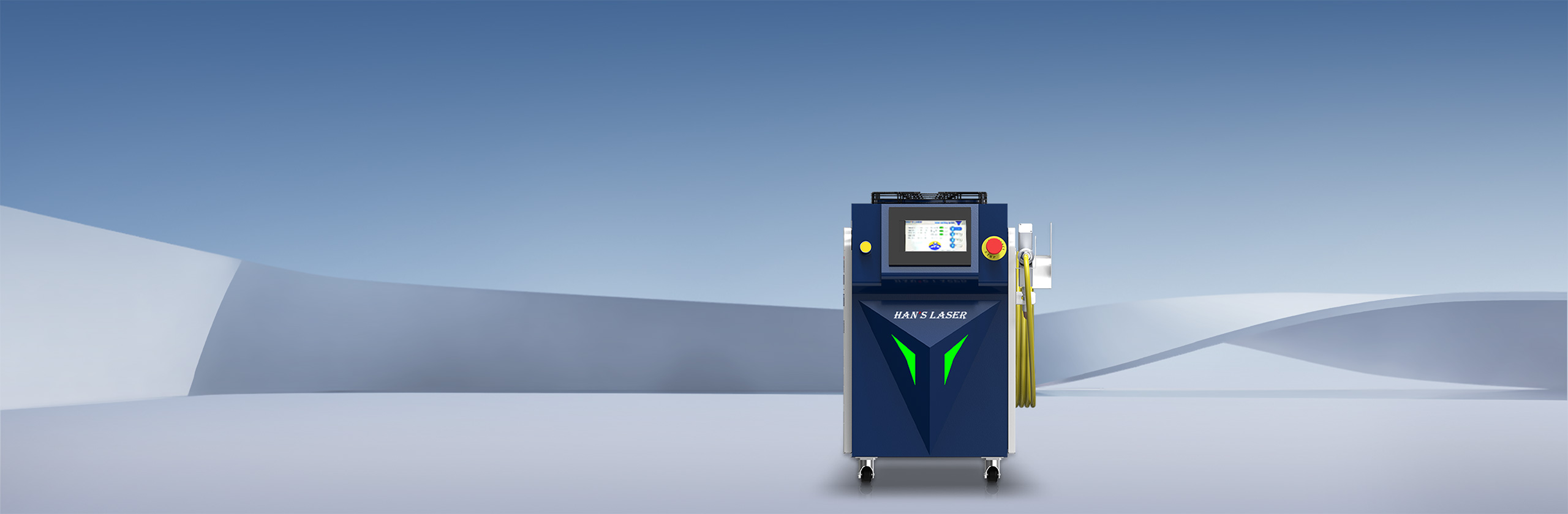

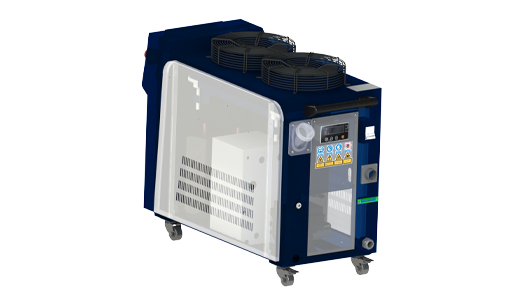

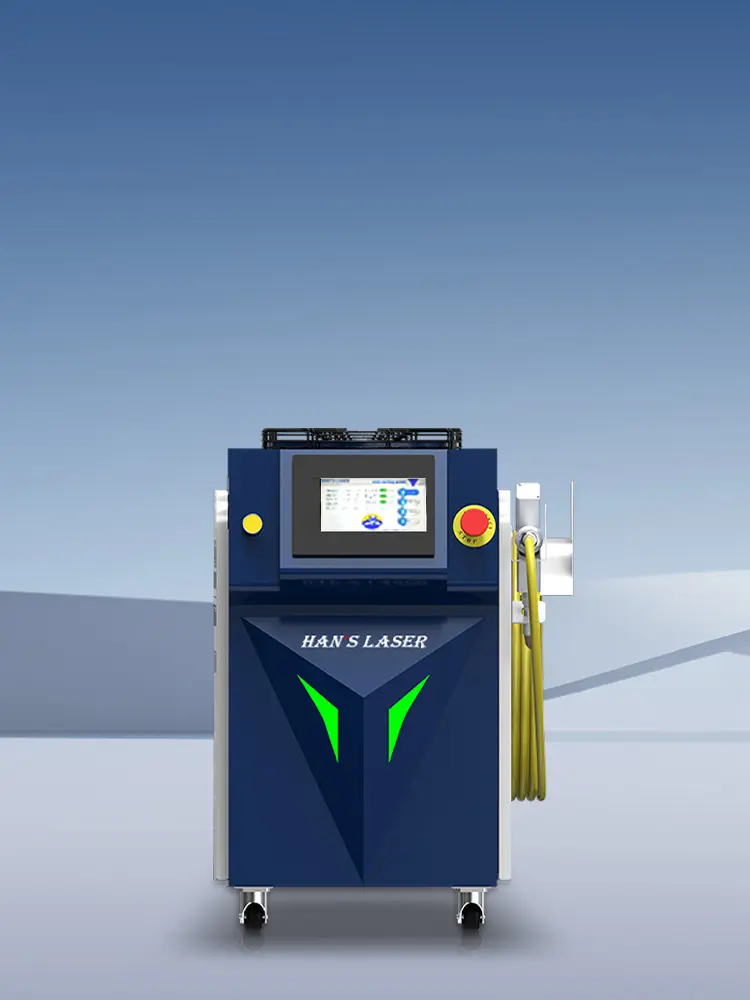

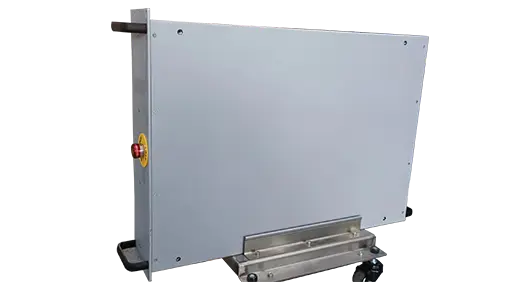

Hand-held laser welding machine hydrocooling: HW1500W/ hydrocooling HW2000W Air cooling: HW1500WF-IPG/ HW1500-HL
W Series Technical Data Sample
Fill for download or contact us
Overview
Beautiful welding seam, No polishing after welding, saving manpower.

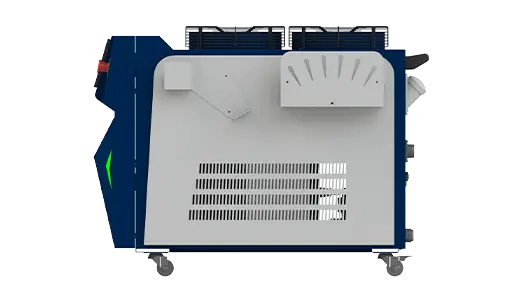

W Series is a standard miniature laser welding machine with highly integrated control system, laser system, gas control and safety control system.

Fast Welding Speed

Can weld stainless steel/ carbon steel/ aluminum alloy/ copper/ galvanized sheet and other materials;
Can realize various forms of laser welding, such as stitching, lap and Angle joint weld.



Simple Operation

Flexible and convenient, without professional welding knowledge, you can directly start the operation. Indoor or outdoor welding work, suitable for all kinds of complex sheet metal/ hardware laser welding.

Laser Source

Stable and reliable optical path transmission system, intelligent high frequency swing welding head, telescopic nozzle, adjustable focus position. It is widely used in complex irregular welding process in metal equipment, stainless steel home and other industries.

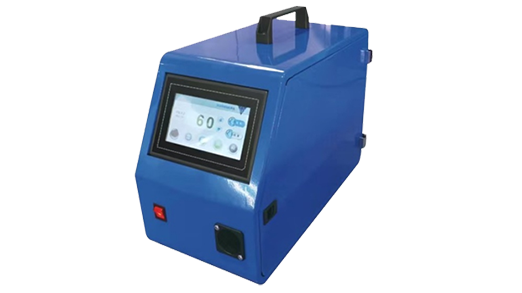

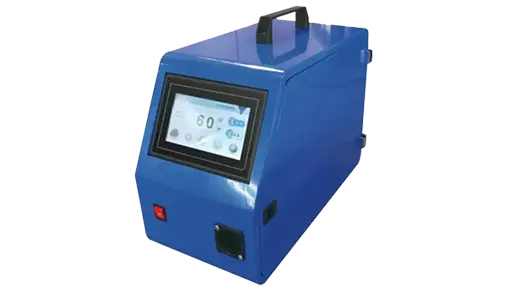

Wire Feeder

The wire feeder can be started and stopped by sending a switch signal through the machine control system. Supports manual wire feeding, manual wire withdrawal, automatic wire withdrawal and automatic wire return. Simple operation, stable wire feeding and flexible adjustment.

Finished Sample
Technical Data
For reference only, all data shall be subject to actual technical documents.

W Series

Laser power

Max power of whole machine

Laser wavelength

Fiber length

Working mode

Vibration lens width(laser swing)

Vibration lens speed

Welding speed

Cooling way

Welding plate thickness

Power supply

Size, W*D*H, mm

Machine weight

1500W

5.5kW

1080±5nm

Standard 10m

Continuance/ Modulation

0~5mm

0~300Hz

0~50mm/s

water chiller

0.4~4mm

AC220V,50/60Hz,Uniphase

316*641*534

About 53kg

1500W

6kW

1080±5nm

Standard 10m

Continuance/ Modulation

0~5mm

0~300Hz

0~50mm/s

water chiller

0.4~4mm

AC220V,50/60Hz,Uniphase

347.5*720*667

About 65kg

1500W

8.5kW

1080±5nm

Standard 10m

Continuance/ Modulation

0~5mm

0~300Hz

0~50mm/s

water chiller

0.4~4mm

AC220V,50Hz,Uniphase

506*958*708

About 132kg

2000W

10.2kW

1080±5nm

Standard 10m

Continuance/ Modulation

0~5mm

0~300Hz

0~50mm/s

water chiller

0.4~4mm

AC380V,50Hz,Three-phase

506*958*708

About 138kg
