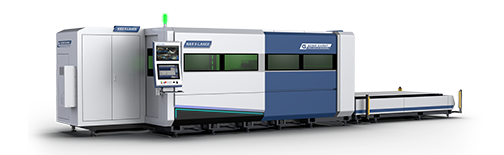

F Series

3kW ⁄ 4kW ⁄ 6kW ⁄ 8kW ⁄ 12kW ⁄ 15kW ⁄ 20kW
G3015F / G4020F / G6020F / G6025F / G8025F / G10025F / G12025F

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser F Series

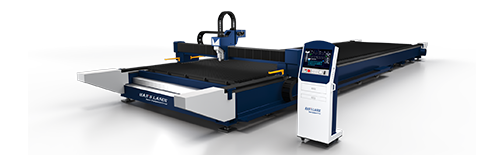

Automatic pallet changer

The exchange worktable consists of a fixed worktable and two movable cutting tables. The chain-driven worktable drives two tables that switch automatically by task.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser F Series

Anti-deformation and long-lasting machine frame

A reliable machine frame keeps your metal processing precise and stable. We send machine bed into the furnace for at least 12h, then go pass by secondary vibration that can perfectly eliminate inner force. The machine reliability guaranteed by enough time heat treatment and secondary vibration.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser F Series

Transmission System

All parts and transmission units on the X-axis, Y-axis, and Z-axis are rigid, precise, and effectively collaborate with other units such as the reducer, gear, rack, pinion, guide rail and etc.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser F Series

Extendable Z-axis space

We extend Z-axis space for a flexible laser head up and down; the distance between the cutting nozzle and the plate always stays the same, effectively ensuring the quality of the cut.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser F Series

Partition dust removal system

There are chambers below the machine. When the cutting head moves to the working area, the damper in the area opens and the other damper closes. The smart exhaust algorithm makes for a better dust removal and cutting environment.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser F Series

CNC System

- Quick-response HMI
- Ethernet communication interfaces
- Easy and quick conversion of auxiliary gases
- Comprehensive cutting process database
- Real-time modification of process parameters
- Direct transmission of part-program files
- Status and real-time diagnosis display
- Remote diagnosis
- Digital servo system

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

Technical data

F Series

Machine Type

Laser Source Power

Working Area

Positioning Accuracy (X/Y)

Repeatability (X/Y)

Max. Positioning Speed (X/Y)

Max. Acceleration (X/Y)

Dimensions (LxWxH)

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

G3015F

3kw ⁄ 4kw ⁄ 6kw ⁄ 8kw ⁄ 12kw ⁄ 15kw ⁄ 20kw (optional)

3000mm×1500mm

± 0.03mm

± 0.02mm

140m/min

2.5G

9200mm×3050mm×2200mm

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

G4020F

3kw ⁄ 4kw ⁄ 6kw ⁄ 8kw ⁄ 12kw ⁄ 15kw ⁄ 20kw (optional)

4000mm×2000mm

± 0.03mm

± 0.02mm

140m/min

2.5G

10950mm×3540mm×2100mm

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

G6020F

3kw ⁄ 4kw ⁄ 6kw ⁄ 8kw ⁄ 12kw ⁄ 15kw ⁄ 20kw (optional)

6000mm×2000mm

± 0.03mm

± 0.02mm

140m/min

2.5G

15000mm×3500mm×2200mm

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

G6025F

3kw ⁄ 4kw ⁄ 6kw ⁄ 8kw ⁄ 12kw ⁄ 15kw ⁄ 20kw (optional)

6000mm×2500mm

± 0.03mm

± 0.02mm

140m/min

2.5G

15000mm×4020mm×2320mm

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

G8025F

3kw ⁄ 4kw ⁄ 6kw ⁄ 8kw ⁄ 12kw ⁄ 15kw ⁄ 20kw (optional)

8000mm×2500mm

± 0.03mm

± 0.02mm

140m/min

2.5G

19700mm×4070mm×2200mm

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

G10025F

3kw ⁄ 4kw ⁄ 6kw ⁄ 8kw ⁄ 12kw ⁄ 15kw ⁄ 20kw (optional)

10000mm×2500mm

± 0.03mm

± 0.02mm

140m/min

2.5G

24000mm×4200mm×2475mm

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

G12025F

3kw ⁄ 4kw ⁄ 6kw ⁄ 8kw ⁄ 12kw ⁄ 15kw ⁄ 20kw (optional)

12000mm×2500mm

± 0.03mm

± 0.02mm

140m/min

2.5G

28000mm×4200mm×2475mm
