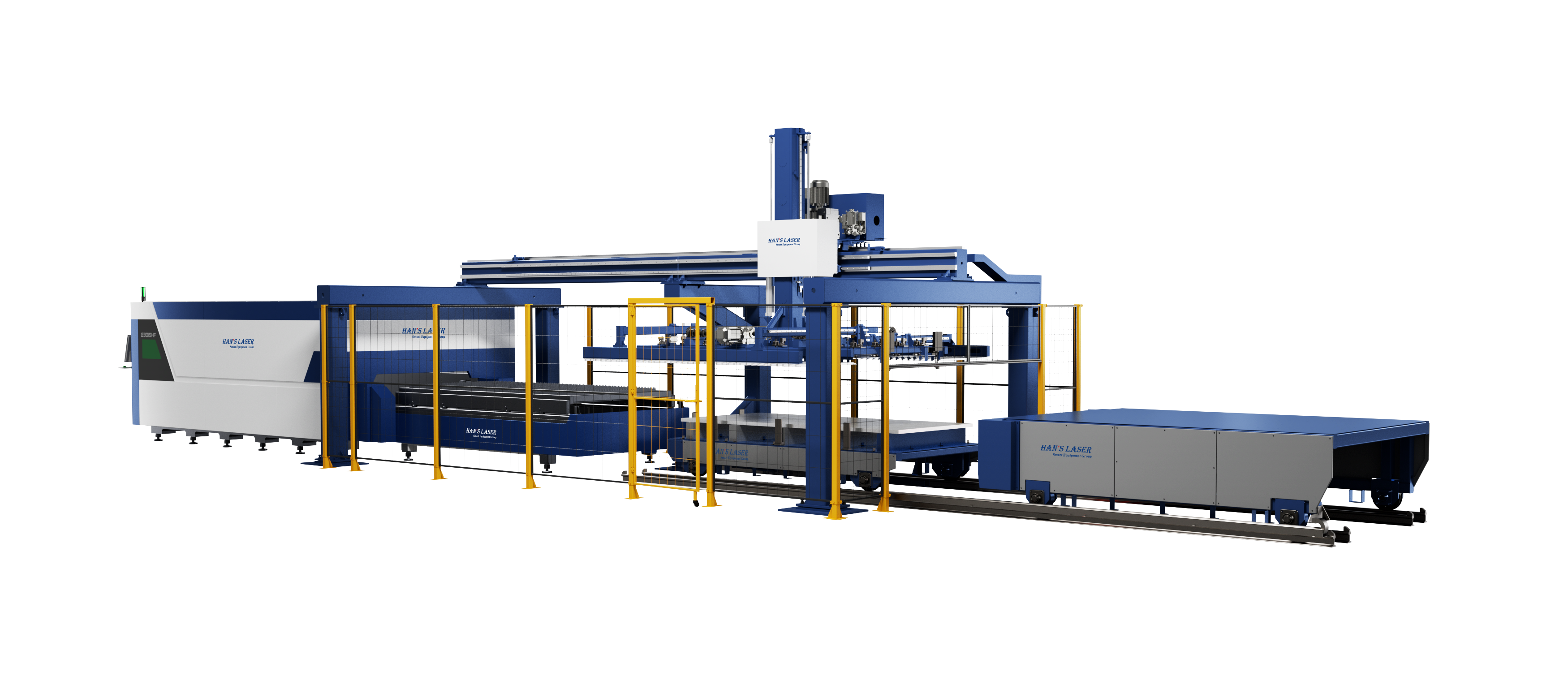

Unmatched Automation

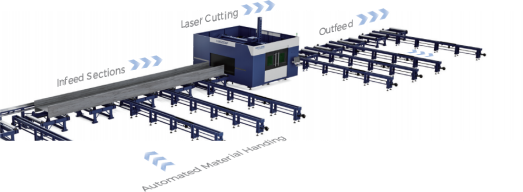

•Fully Automatic Loading & Unloading, ensuring continuity and minimizing operator dependence.
•Support automatic loading and unloading of multiple H-beams；
•Implement zero tailings cutting with any port and graphics;

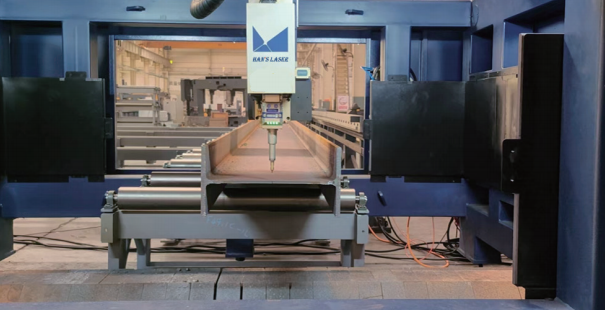

Clamping and Servo Feed-in
Accurate Positioning of Workpieces
The feeding clamp quickly approaches the section steel, and after detecting the workpiece through the detection switch on the clamp, clamps and limits the H-beam to ensure accuracy and stability during cutting.
3D Cutting
B axis up to ±45°, C axis up to ±90°.
This capability offers our customers sophisticated and tailored steel cutting solutions, enhancing the operational excellence of industries requiring high-precision metal processing.
Laser Safety
Fully Enclosed Cutting Environment
Equipped with thickened sheet metal protective cover. Laser protection level is high to ensure production safety
Wide Processing Rang
•Profile widths up to 1250mm;
•Profile heights up to 600mm;
•Available power: 12kW ⁄ 20kW ⁄ 30kW;

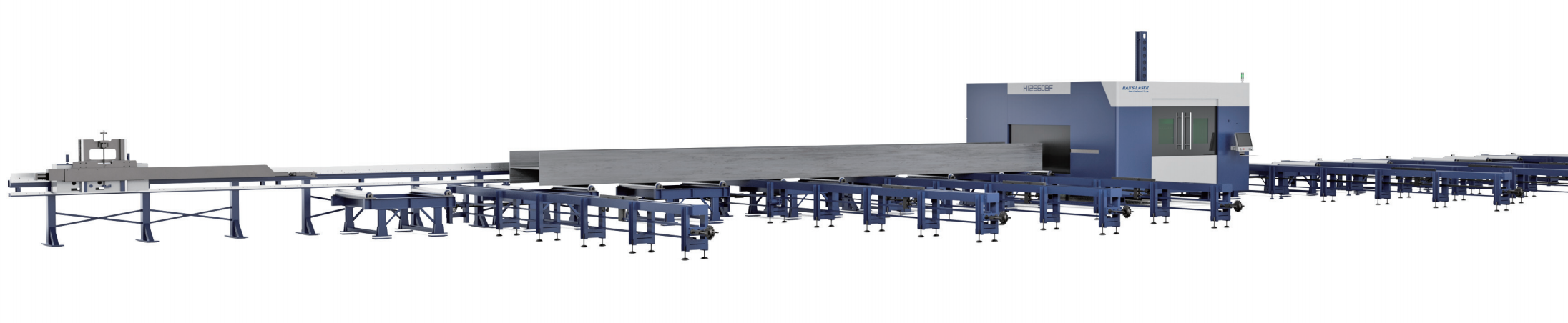

•Supports up to 12 meters of entire H-steel for loading,cutting, and unloading.
High-quality Results
Subvert Traditional Cutting Technology
Copes are smooth and do not require additional grinding or shaping.

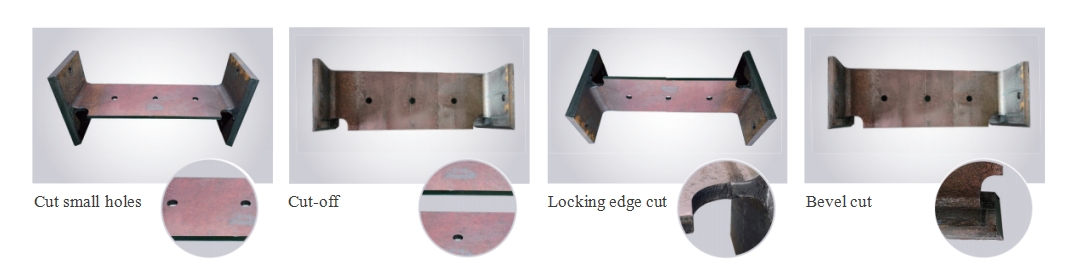

Cutting off, bevel cut, locking edge cut, cut small holes can be done in one machine.
High-Productivity

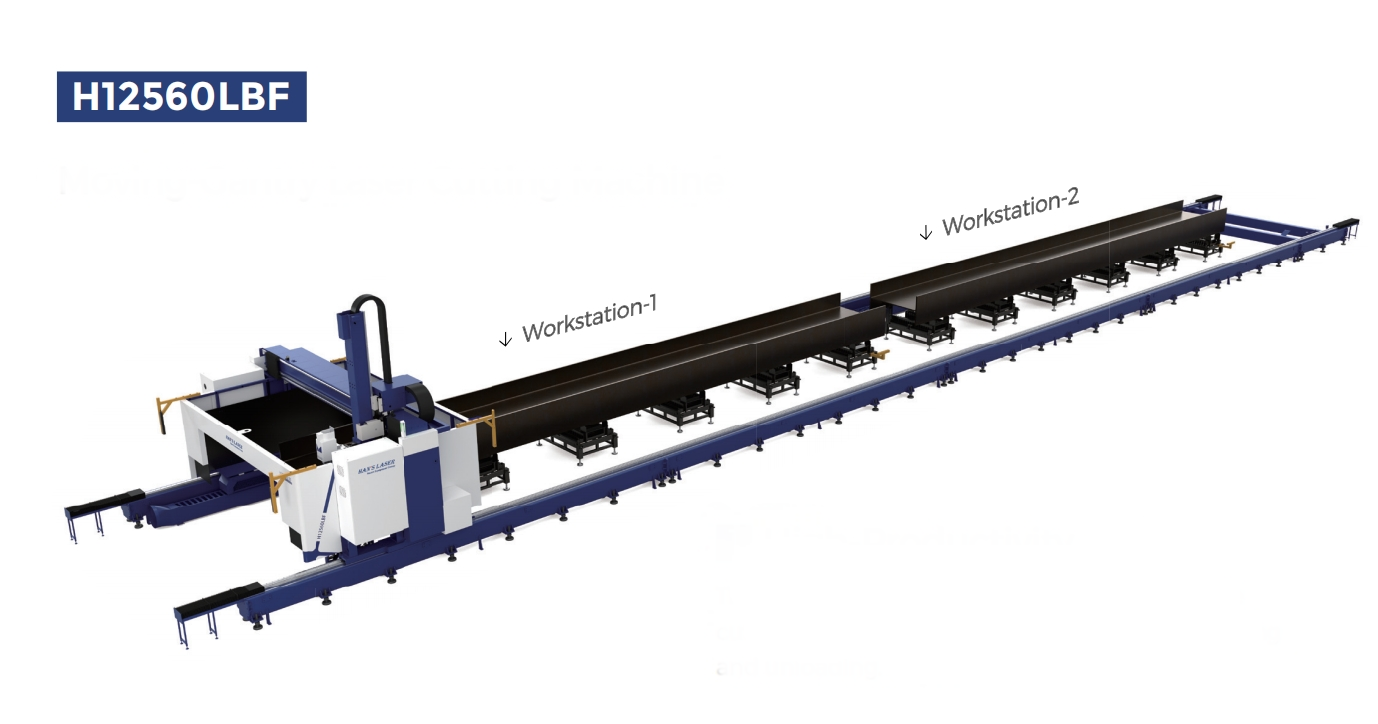

Thanks to Two-Operating Position design, While cutting at Workstation-1, Workstation-2 can loading and unloading.

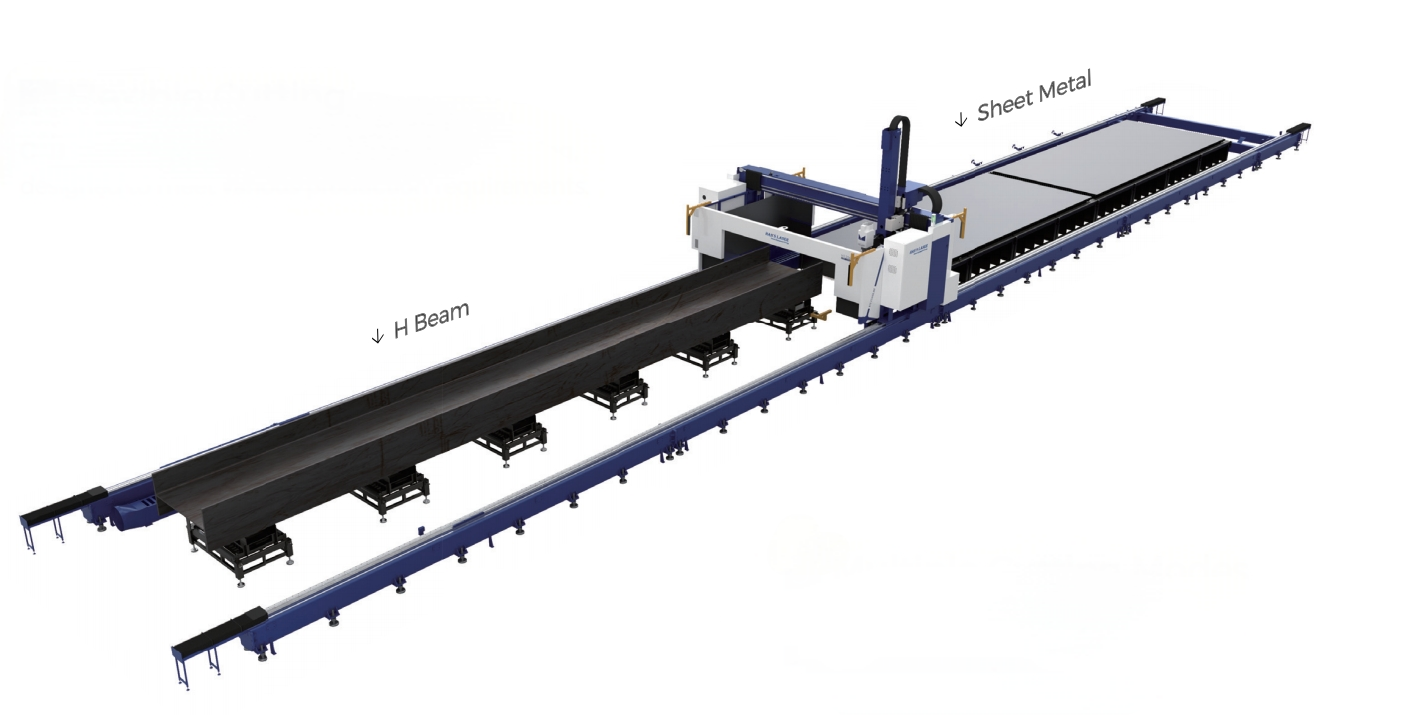

Flexible Cutting
Compatible with structural steel and plate cutting,designed to meet various production requirements.
Multiple Cutting Modes
•Bevel cutting with 5-Axis Laser Cutting;
•Multi-area cutting is possible.
H Beams Laser Cutter Series
Cutting range (H Beam)
Cutting range (Sheet Metal)
Loading length
Bevel cut angle
X, Y axis positioning accuracy
Repeat positioning accuracy
A , B axis positioning accuracy
Max. X, Y axis positioning speed
1250mm×600mm
26000mm×2500mm
12000mm
0-45°
±0.08mm
±0.08mm
±0.1°
40m/min
