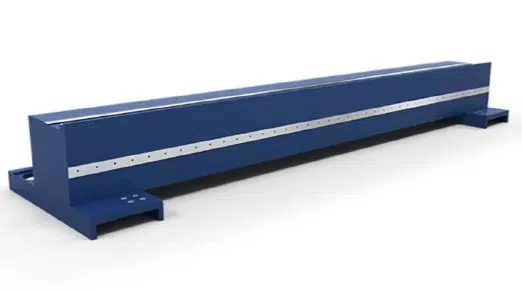

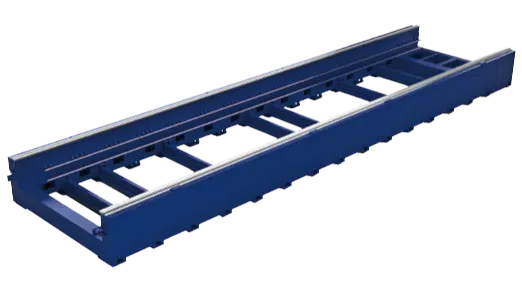

The full-width standard is equipped with German imported brands to ensure that the error of each movement of the machine tool is controlled below 0.03 mm

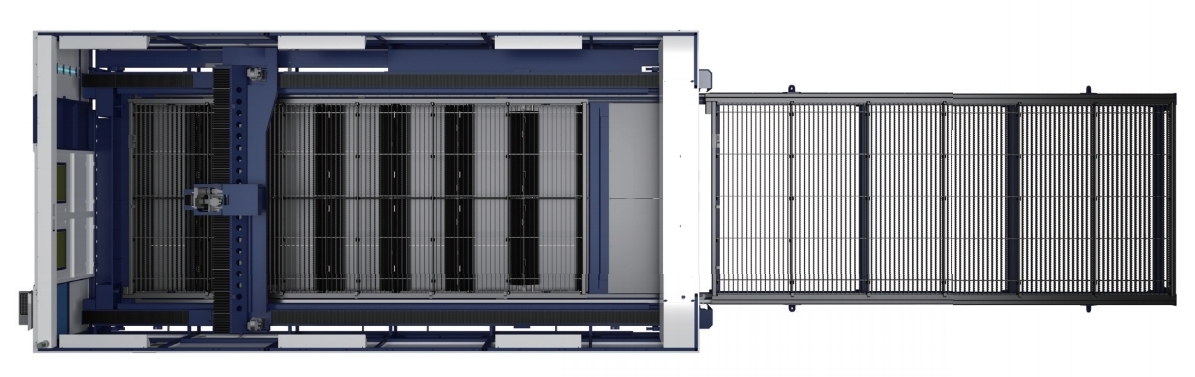

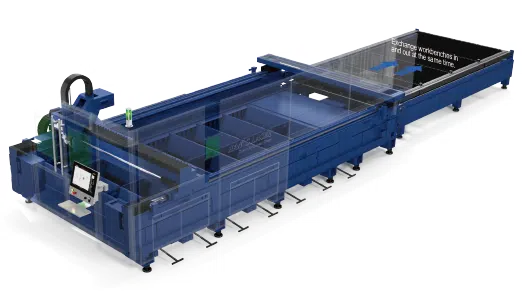

Strong exchange table design
•The workbench is pulled out for easy maintenance and cleaning.

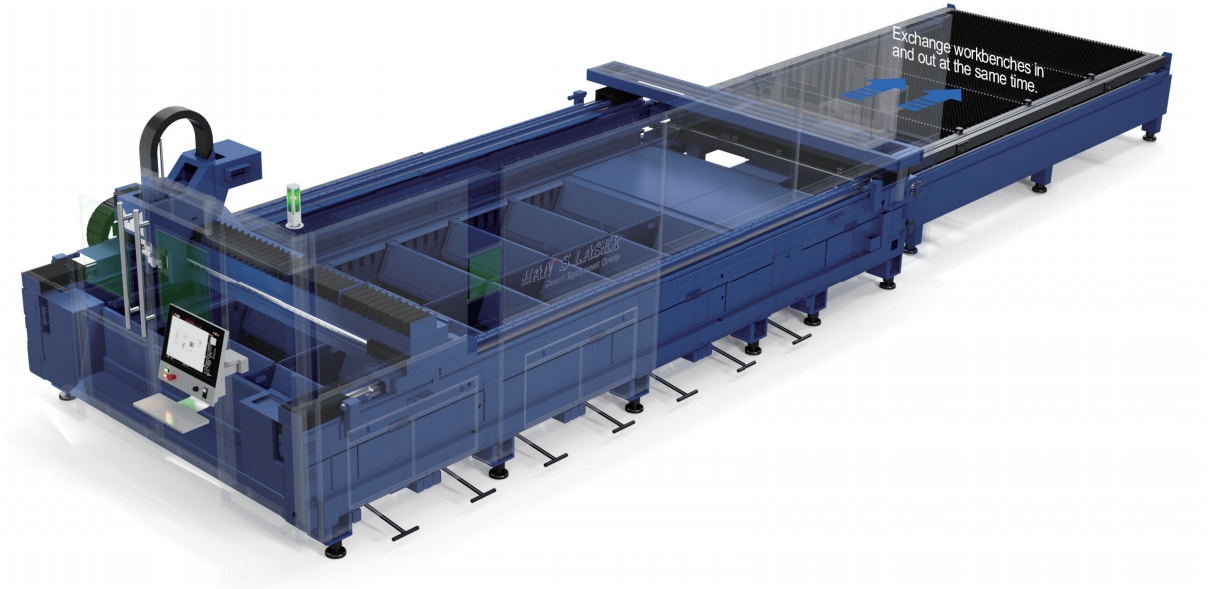

•Exchange workbenches in and out at the same time.

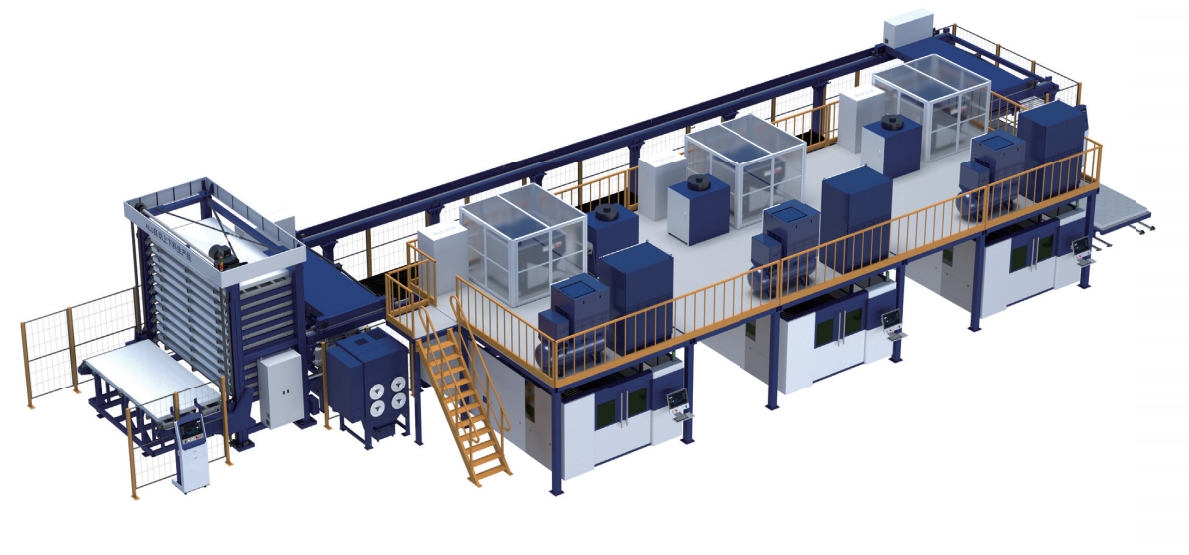

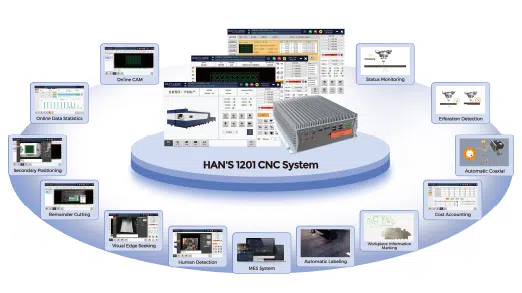

Strong technical support and many project experience , offer various automation solution according to customer
requirements.
•Special functions required by customers can be customized
•After setting the parameters of a plate material, subsequent cutting of the same plate material only needs to be called without resetting.

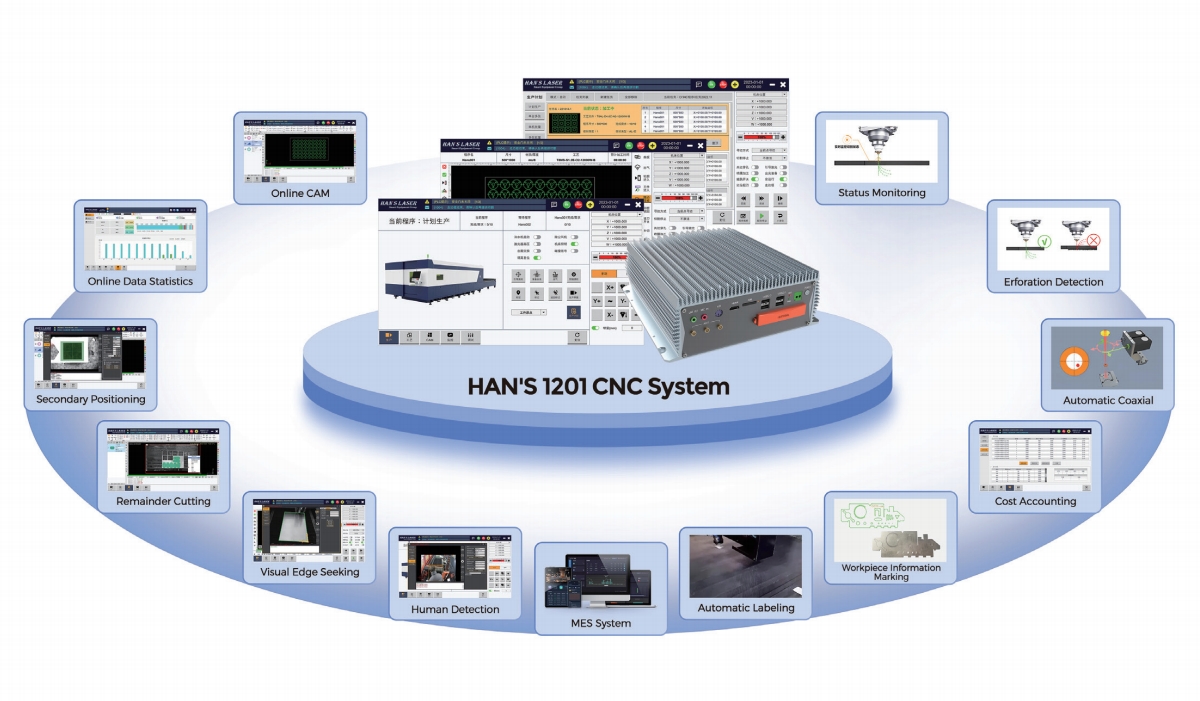

•The full cycle scan only takes 0.5s
Increase cutting area to accommodate inch-gauge boards.

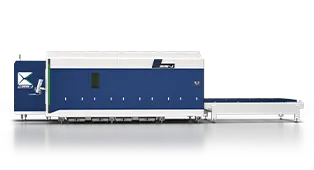

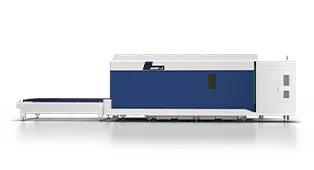

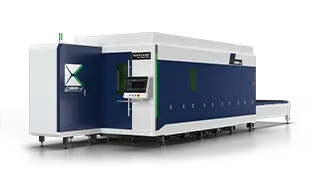

G-F Series
Working Area
Max axis positioning speed
Acceleration
Precision
Repeat positioning accuracy
Max sheet weight
Available laser power
3000mm×1500mm
140m/min
2.5G
±0.03mm/m
±0.02mm
900kg
3kW-60kW
4000mm×2000mm
140m/min
2.0G
±0.03mm/m
±0.02mm
2000kg
3kW-60kW
6000mm×2000mm
140m/min
2.0G
±0.03mm/m
±0.02mm
5600kg
3kW-60kW
6000mm×2500mm
140m/min
2.0G
±0.03mm/m
±0.02mm
6000kg
3kW-60kW
8000mm×2500mm
140m/min
2.0G
±0.03mm/m
±0.02mm
9400kg
3kW-60kW
12000mm×15000mm
140m/min
2.0G
±0.05mm/m
±0.03mm
14000kg
3kW-60kW
