What is bevel laser cutting and why is it important for pressure vessel manufacturing?
Bevel laser cutting is an advanced process that allows simultaneous plate cutting and bevel preparation in a single operation. Advanced bevel laser cutting technology from Han's Laser delivers high performance, enabling manufacturers in the pressure vessel industry to significantly improve processing efficiency, shorten production cycles, and reduce overall manufacturing costs compared to traditional multi-step methods.
Why is bevel cutting important for pressure vessels?
Pressure vessels are primarily fabricated from medium-thick plates with large dimensions, where welding quality is critical.
During the cutting stage, bevel preparation is essential to ensure:
-
•Strong weld joints
-
•Proper fit-up
-
•Long-term structural reliability
Traditional bevel processing has limitations, It typically involves multiple steps, such as separate cutting and milling operations, which increases time and cost.
In contrast, Han's Laser large-format bevel laser cutting machine can perform cutting and beveling in one step, which:
-
•Streamlines the workflow
-
•Reduces material handling
-
•Improves production efficiency
-
Lowers energy consumption and labor requirements
This integrated approach meets the demanding requirements of modern pressure vessel manufacturing.
Rapid Oxygen Cutting for Carbon Steel

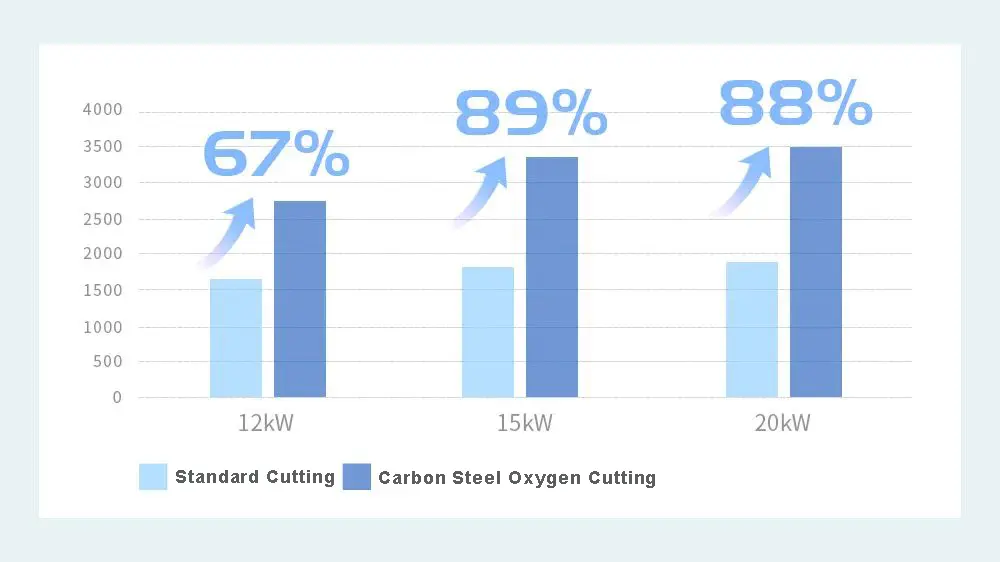

Rapid oxygen cutting technology significantly improves carbon steel processing efficiency.
-
•Efficiency can increase by up to 120% compared to conventional methods
-
•Produces high-quality cut surfaces with minimal taper
-
•Ideal for medium-thick plates
As laser power increases, the rapid oxygen cutting capacity for carbon steel also improves:
| Laser Power | Max Carbon Steel Thickness |
|---|---|
| 15 kW | up to 30 mm |
| 30 kW | up to 50 mm |
This allows manufacturers to achieve faster cutting speeds without compromising quality.
Low-Pressure Air Cutting with Gas Mixing
Low-pressure gas mixing cutting refers to the automatic distribution and delivery of the mixed gases required for cutting through a seamlessly integrated machine tool pneumatic system, thereby achieving optimal cutting performance.
Key benefits include:
-
•Reduced slag adhesion on edges and corners
-
•Cleaner cut surfaces
-
•Improved overall cutting quality for carbon steel

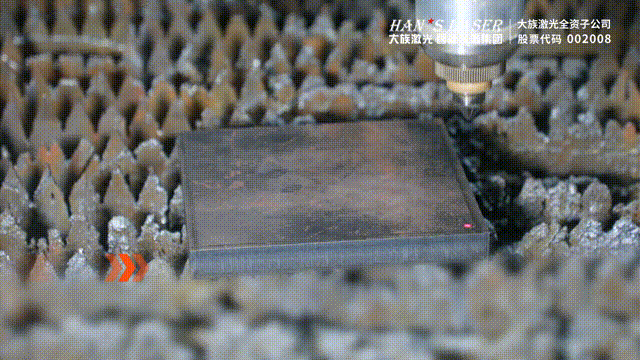

Flexible Bevel and Head Cutting for Complex Applications
Conventional bevel processing methods often lead to inconsistent quality, such as edge hardening, which negatively impacts welding performance.
Equipped with an advanced five-axis cutting head, modern laser cutting systems can achieve :
-
•High-precision cutting
-
•Reduced material deformation
-
•Greater flexibility in bevel geometry
These systems can easily produce a variety of bevel types, including: Straight bevels,V-shaped,Y-shaped, K-shaped.
In addition, upgraded bevel cutting software and motion control algorithms enable seamless switching between flat plate processing and complex vessel head applications, such as:
-
•Edge trimming
-
•Separation cutting
-
•Hole piercing
-
•Welding edge preparation
This versatility ensures high accuracy while minimizing rework and improving overall production efficiency.
Conclusion
Bevel laser cutting is becoming a key technology for modern pressure vessel production.
Solutions from Han's Laser integrate high-power cutting, bevel processing, and intelligent control systems, enabling manufacturers to improve efficiency, reduce costs, and achieve higher product quality.
Frequently Asked Questions (FAQ)
-
1.What is bevel laser cutting?
Bevel laser cutting is an advanced process that enables simultaneous plate cutting and bevel preparation in a single operation. It improves efficiency, reduces production time, and lowers overall manufacturing costs compared to traditional multi-step cutting and milling methods.
-
2.Why is bevel cutting important for pressure vessel manufacturing?
Bevel cutting is essential for pressure vessel manufacturing because it ensures high-quality welding, proper joint fit-up, and structural integrity. Pressure vessels are typically made from medium-thick plates, and accurate bevels are critical for strong and reliable welds.
-
3.What are the benefits of using Han'sLaser bevel cutting solutions?
Han'sLaser bevel cutting solutions combine high-power laser technology, precision bevel processing, and intelligent control systems to deliver higher efficiency, lower operating costs, and superior cutting quality for pressure vessel manufacturers.
