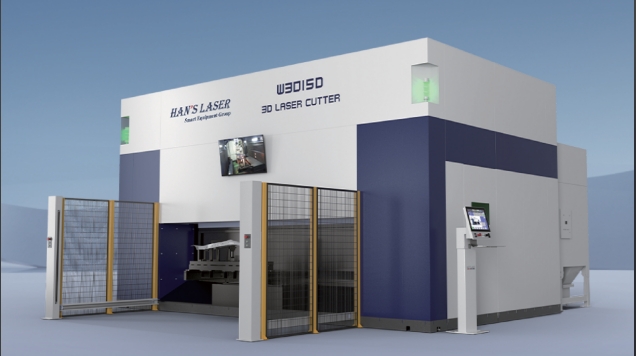

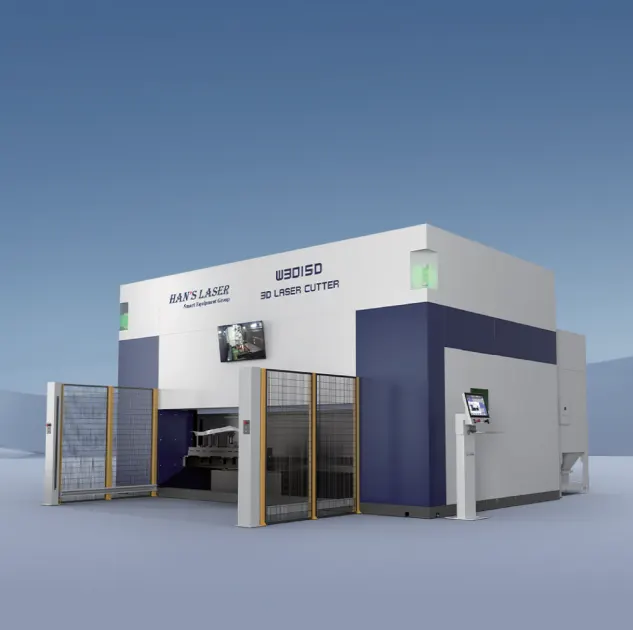

Han's Laser’s High-Productivity 3D Laser Cutting Machine is designed for optimal performance in cutting hot-formed components. Below are the key advantages Ⅰ:

1. Lower Cutting Head Weight

· The weight of the cutting head is reduced from 45 kg to less than 30 kg, achieving a weight reduction of over 30%.

· This reduction improves the overall performance of the cutting head by 15%, enhancing dynamic performance and operational efficiency.

2. 3D Spatial Collision Avoidance

· A-axis features an anti-collision mode with 360° protection.

· W-axis is equipped with a high-sealing dustproof structure, prolonging the service life of the lens in harsh environments.

· These features improves the dynamic performance, enhance equipment stability and help reduce operational costs.

3. High-Dynamic Performance

· 20% weight reduction of the Y-axis and Z-axis beams, achieved through integral casting and aviation-grade aluminum parts.

· The layout of the Y-axis and Z-axis is optimized for better maintenance and lighter weight.

· Improved cable sealing from the Z-axis to the cutting head ensures longer service life and better performance.

4. Extremely Fast

· The X-axis beam weight is reduced by 25%, with lightweight beams offering increased rigidity and strength.

· This improvement enhances the dynamic performance of moving parts.

· Sealing plates around the dust cover protect transmission parts from contamination, ensuring consistent and fast operation.

5. Work Environment Friendly

· High-volume dust removal system: the dust collector is placed close to the machine guard, and the dust collection pipe connects directly to the internal air duct, ensuring optimal dust removal without resistance.

· This system protects precision parts from dust contamination and reduces cutting exhaust and dust, minimizing environmental pollution and harm to human health.

6. High Stability

· The unique U-shaped base fixing structure developed by Han's Laser provides a large cross-sectional area, ensuring rigidity and stability of the machine bed.

· This structure ensures long-term stability and reduces the risk of distortion during operations.

7. Laser Safety

· Fully enclosed design with radiation-resistant glass windows to protect operators from laser radiation.

· The design reduces noise pollution and cutting smoke, ensuring a safer and cleaner working environment.

· The doors feature a chain protection function, providing an additional layer of safety.
