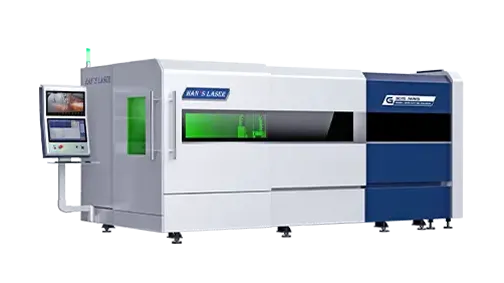

O Series

2kW ⁄ 3kW ⁄ 4KW ⁄ 6kW ⁄ 8kW ⁄ 12kW
G3015-O / G4020-O / G6025-O

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser O Series

One-time processing

Machining by Mitsubishi five-axis gantry precision machining master machine imported from Japan, one-time processing to ensure the overall processing quality of the machine tool and the assembly accuracy of the whole machine.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser O Series

Stress relieving

Stress is eliminated after welding and annealing. Second time process after semi-finishing can effectively ensure that the machine bed will not deform during long-term use, and it has excellent shock resistance, rigidity and stability.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser O Series

Dust removal device

The cutting area of the machine tool is equipped with a sectional dust removal and smoke exhaust device,when the cutting head moves to the working area, the air door in the area is opened, and other air doors are closed, and a waste cart is installed at the bottom of the cutting area, which can be pulled out regularly to clean up the waste.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser O Series

Cross beam

Using aluminum alloy material, light weight and good dynamic performance; The process is using casting molding method, heat treated for rough machining, and then secondary vibration aging for fine finishing, which ensures the overall strength, rigidity and stability of the beam.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser O Series

Laser cutting head

Fully self-developed fiber laser special cutting head, under the strict beam shaping and mechanical design, the fixed optical ratio lens is selected, coupled with the non-contact high automatic tracking system of Han's SMC capacitor, after strict performance test, it has achieved Unanimously recognized by the market.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser O Series

Laser source

The HS series of new advanced fiber lasers independently developed by Han's laser are widely used in the processing of various plates and even non-ferrous metals with good beam quality, high electro-optical conversion rate and stable power output.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser O Series

CNC system

Adopt "Han's SMC" open CNC system, which is based on Windows 7 Chinese and English operation interface, has the characteristics of high reliability, high performance, intelligence and networking, high cost performance, simple operation and convenient use.

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser
Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

Technical data

O Series

Machine Type

Laser Source Power

Working Area

Positioning Accuracy (X/Y)

Repeatability(X/Y)

Max. Positioning Speed (X/Y)

Max. Acceleration (X/Y)

Max. Work piece Weight

Dimensions (LxWxH)

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

G3015-O

2000w ⁄ 3000w ⁄ 4000w ⁄ 6000w ⁄ 8000w ⁄ 12Kw (optional)

3000mm×1500mm

±0.05mm

0.03mm

120m/min

1.5G

900kg

4800mm×2200mm×2000mm

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

G4020-O

2000w ⁄ 3000w ⁄ 4000w ⁄ 6000w ⁄ 8000w ⁄ 12Kw (optional)

4000mm×2000mm

±0.05mm

0.03mm

120m/min

1.5G

1600kg

5700mm×2900mm×2000mm

Laser Cutting, Welding, Bending, Automation Solution Provider | Han's Laser

G6025-O

2000w ⁄ 3000w ⁄ 4000w ⁄ 6000w ⁄ 8000w ⁄ 12Kw (optional)

6000mm×2500mm

±0.05mm

0.03mm

120m/min

1.5G

4800kg

7900mm×3400mm×2000mm
